GTC1549VZ Hybrid Turbo Upgrade 1.6TDI CLNA, CAYA, CAYB, CAYC

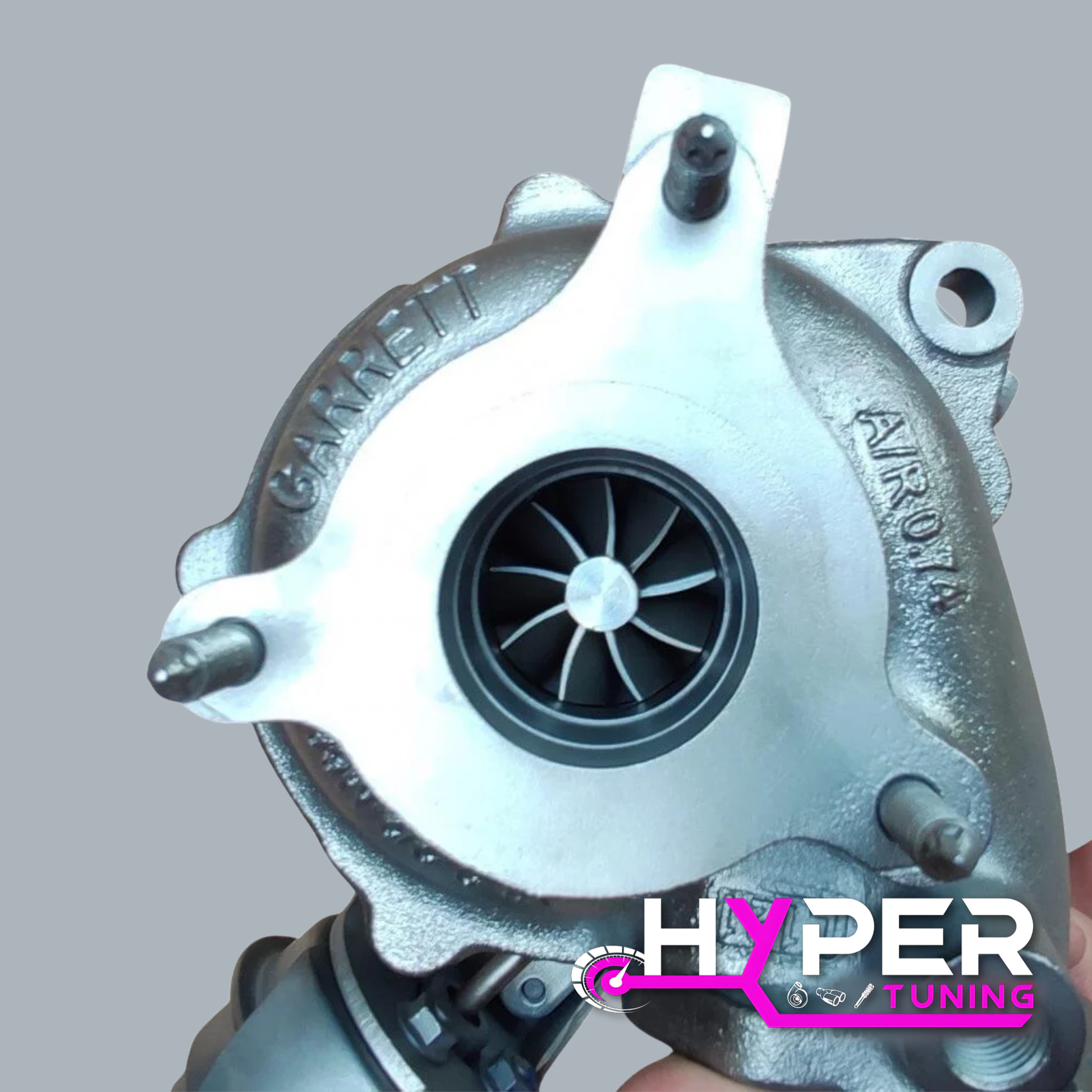

GTC1549VZ Upgraded Turbocharger with an Enlarged Billet Compressor Wheel. It is based on a genuine Garrett/BorgWarner turbocharger, which means that the installation is 100% Plug&Play. The turbocharger is meant to work with Audi A3, VW Golf, Jetta, Passat, Touran, Polo, Caddy with the 1.6TDI 105HP engine.

The turbo delivers up to 200% of stock power (105HP extra) which means it could be perfect for a faster daily driver, to gain some additional power.

• Fast spool thanks to enlarged Billet Compressor,
• Larger Turbine Wheel,
• High air-fuel ratio including high peak torque achieved at low engine speeds.
• Modified Genuine compressor housing,
• Genuine exhaust manifold,
• Genuine bearing housing,
• Dynamically balanced,
• Machined exhaust housing.
• Upgraded Journal bearing system that allows holding more boost,
• Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
• The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.

Engines

CLNA, CAYA, CAYB, CAYC

In order to reach that level of power, you need ECU remapping.

(If your engine has a different code, please send us a message. We will verify it.)

All Turbos are made to order allow 8-10 working days for production

once ordered no returns accepted
